• Country
• Spain

• Manufacturer / Brand
• Optimus; Gerona

• Year
• 1965 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 128986

• • alternative name: Pla Hermanos y Cía

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• OC71 or. OC75 OC71 or. OC75 OC72 or. OC74 OC27 or. OC26 OC26 or. OC27 OC26 or. OC27

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org
• Model: Moncayo 119 - Optimus; Gerona

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 255 x 125 x 165 mm / 10 x 4.9 x 6.5 inch

• Notes

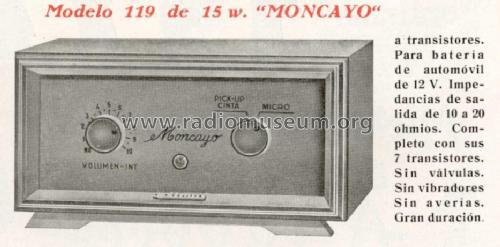

• Curiosamente el anuncio indica siete transistores pero el esquema muestra sólo seis.

• Net weight (2.2 lb = 1 kg)
• 3.250 kg / 7 lb 2.5 oz (7.159 lb)

• Source of data
• -- Schematic

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
