• Country
• Spain

• Manufacturer / Brand
• Optimus; Gerona

• Year
• 1977

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 291750

• • alternative name: Pla Hermanos y Cía

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 42

• Semiconductors
• SC149 SC148 BD230 BD237 2N6254 SC147 BF245B or. 2N3819 MC150 BY126 BY127 BZX75 BZX79 CQY85 CQY86

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 125; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 60 W (100 W max.)

• from Radiomuseum.org
• Model: Amplificador ART-60 - Optimus; Gerona

• Dimensions (WHD)
• 360 x 287 x 106 mm / 14.2 x 11.3 x 4.2 inch

• Notes

• Listado un único semiconductor por tipo.

• Net weight (2.2 lb = 1 kg)
• 7.5 kg / 16 lb 8.3 oz (16.52 lb)

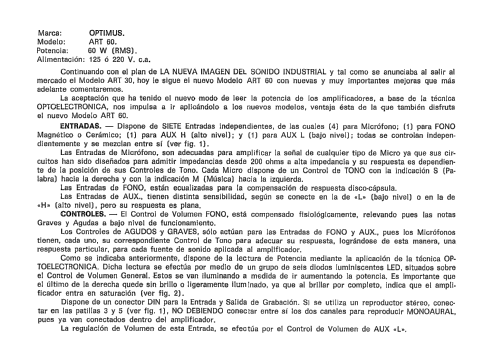

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Ruben Garcia Bayon. See "Data change" for further contributors.
