Nevada D200
Optimus; Gerona
- Country
- Spain
- Manufacturer / Brand
- Optimus; Gerona
- Year
- 1962 ??
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 153222
-
- alternative name: Pla Hermanos y Cía
- Number of Tubes
- 8
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 125; 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 50 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Nevada D200 - Optimus; Gerona
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 370 x 130 x 290 mm / 14.6 x 5.1 x 11.4 inch
- Notes

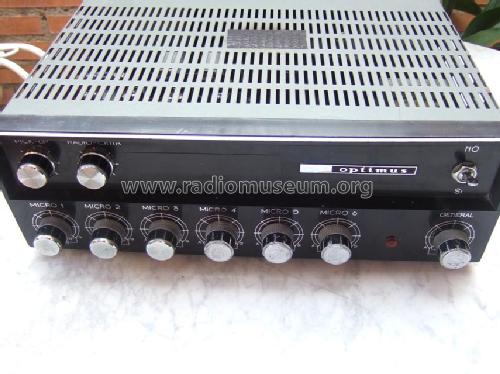

- 4 diodos BY126M como puente rectificador. Amplificador de 50 W de potencia, 6 entradas de micro, 1 entrada de radio/cinta y 1 entrada de pick-up. 8 salidas de impedancia de 4 a 500.
- Author
- Model page created by Diego Fernandez-Fernandez. See "Data change" for further contributors.
