• Year
  • 1949–1952
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 109306

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 145; 220; 245 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch
  • Material
  • Bakelite case
  • from Radiomuseum.org

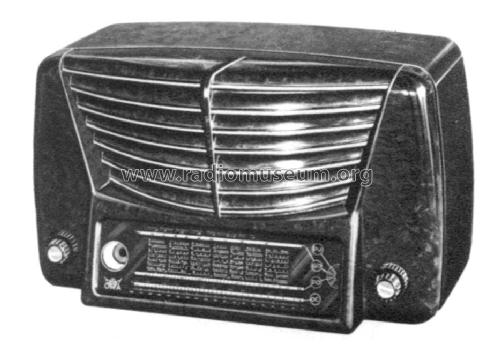

  • Model: Harmonie 294 - ORA, Oradyne, Gérard & Cie,
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 480 x 293 x 245 mm / 18.9 x 11.5 x 9.6 inch
  • Notes
  • 3 gammes d'ondes GO, PO, OC. H.P. de 21 cm à champ renforcé. Cadran cristal 260 x 80 mm éclairé par transparance, au plan de Copenhague. Entraînement gyroscopique.

  • Net weight (2.2 lb = 1 kg)
  • 10.5 kg / 23 lb 2 oz (23.128 lb)
  • Source of data
  • - - Manufacturers Literature
  • Literature/Schematics (1)
  • -- Original prospect or advert
  • Author
  • Model page created by Willy Ostertag. See "Data change" for further contributors.
