Néprádió 011U

Néprádió 011U; Orion; Budapest (ID = 263650) Radio
Néprádió 011U; Orion; Budapest (ID = 388646) Radio Néprádió 011U; Orion; Budapest (ID = 471631) Radio
Néprádió 011U; Orion; Budapest (ID = 897807) Radio Néprádió 011U; Orion; Budapest (ID = 897808) Radio
Néprádió 011U; Orion; Budapest (ID = 1799652) Radio Néprádió 011U; Orion; Budapest (ID = 1980243) Radio
Néprádió 011U; Orion; Budapest (ID = 2348337) Radio
Use red slider bar for more.

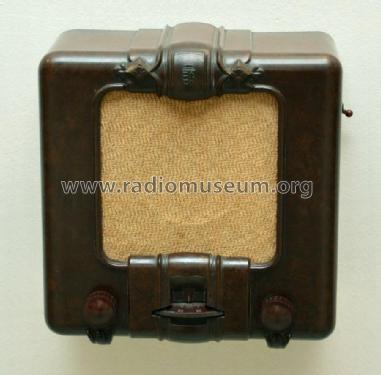

Néprádió 011U; Orion; Budapest (ID = 388646) Radio
Orion; Budapest: Néprádió 011U [Radio] ID = 388646 650x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Néprádió 011U, Orion; Budapest

Country:  Hungary
Manufacturer / Brand:  Orion; Budapest
Year: 1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 2: VCL11 VY2
Main principle TRF with regeneration
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 110-220 Volt
Loudspeaker Magnetic loudspeaker (reed) of high quality (free mooving - only possible past 1931).
Power out
from Radiomuseum.org Model: Néprádió 011U - Orion; Budapest
Material Bakelite case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 240 x 250 x 120 mm / 9.4 x 9.8 x 4.7 inch
Price in first year of sale 43.00 Pengő
Source of data -- Original prospect or advert
Mentioned in Rádiókészülékek Kapcsolásai 1936-56

Model page created by Walter Wiesmüller † May 2012. See "Data change" for further contributors.



All listed radios etc. from Orion; Budapest
Here you find 998 models, 854 with images and 373 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
