• Year
  • 1941
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 83232

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 3
  • Main principle
  • TRF (Tuned-Radio-Frequency but use of regeneration unknown)
  • Tuned circuits
  • 1 AM circuit(s)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Storage and/or dry batteries / 1,4 & 9 & 120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 1.5 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

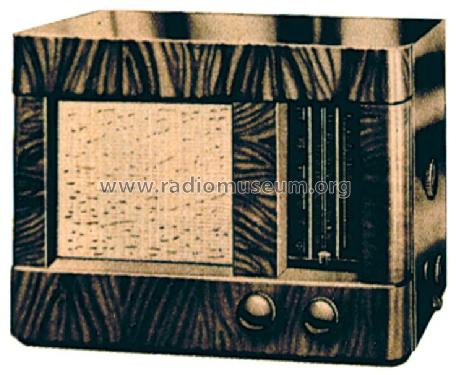

  • Model: 133B - Orion; Budapest
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 460 x 320 x 215 mm / 18.1 x 12.6 x 8.5 inch
  • Notes
  • Nur dieses Modell 133B und das Modell 144B haben diese speziellen Röhren mit 15 mm Stiftkreisdurchmesser. Orion Modell 133B hat eine Gegentaktendstufe.

  • Price in first year of sale
  • 209.00 Pengő
  • Source of data

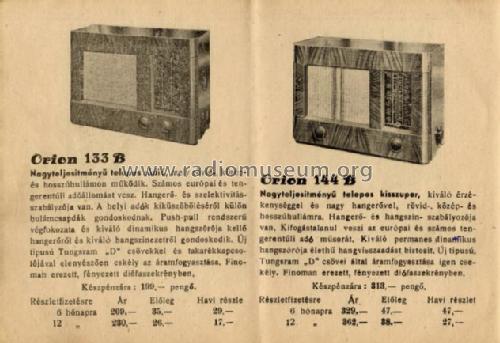

  • -- Original prospect or advert
  • Literature/Schematics (1)
  • Rádió Compass 1940-41.
  • Author
  • Model page created by Folkert Rothe. See "Data change" for further contributors.
