• Country
• Hungary

• Manufacturer / Brand
• Orion; Budapest

• Year
• 1941–1943

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 17961

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECH3 EBF2 UCL11 UY1

• Main principle
• Superheterodyne (common); ZF/IF 473,6 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 16 cm = 6.3 inch

• Power out
• 3 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org

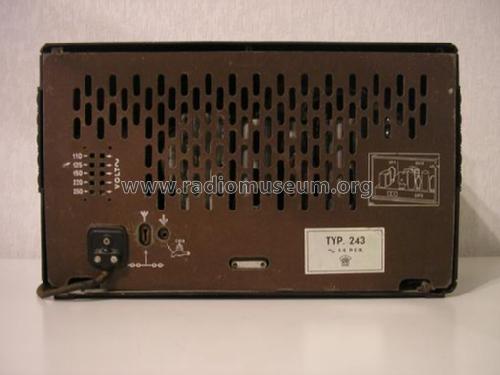

• Model: 243 - Orion; Budapest

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 418 x 260 x 173 mm / 16.5 x 10.2 x 6.8 inch

• Notes
• Autotrafo!

• Price in first year of sale
• 273.00 pengö

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• -- Original prospect or advert

• Circuit diagram reference
• Die «Thali Schemasammlung» führt das Modell.

• Literature/Schematics (1)
• Rádiókészülékek Kapcsolásai 1936-56

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
