299; Orion; Budapest (ID = 1980235) Radio
Orion; Budapest: 299 [Radio] ID = 1980235 1399x1023
Select picture or schematic to display from thumbnails on the right and click for download.
For model 299, Orion; Budapest:
Thanks for Mr.Mátyás Nagy, Vecsés, Hungary and Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation.

Country:  Hungary
Manufacturer / Brand:  Orion; Budapest
Year: 1941/1942 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 17: EF8 ECH4 EF9 EB4 EM4 EBF2 EF6 EBC3 EB4 EF6 EF6 EBC3 EB4 EF6 EL6 EL6 PV200/600
Main principle Superhet with RF-stage; ZF/IF 473,6 kHz
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker 2 Loudspeakers
Power out 16 W (unknown quality)
from Radiomuseum.org Model: 299 - Orion; Budapest
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 1540 x 1060 x 640 mm / 60.6 x 41.7 x 25.2 inch
Notes Motorabstimmung, 16 Stationstasten.
2 Vorkreise, 1 Oszillatorkreis, 6 ZF-Kreise und 4 Hilfskreise. Lautsprecher strahlt nach hinten in ein gefaltetes Hornsystem.

Wired Remote Control, 8 programs, headphone volume.
Speaker diameter: 14,4 and 31 cm.
Net weight (2.2 lb = 1 kg) 160 kg / 352 lb 6.8 oz (352.423 lb)
Price in first year of sale 3'020.00 pengö
External source of data Collector Info (Sammler), Funkgeschichte des GFGF (FG.90)

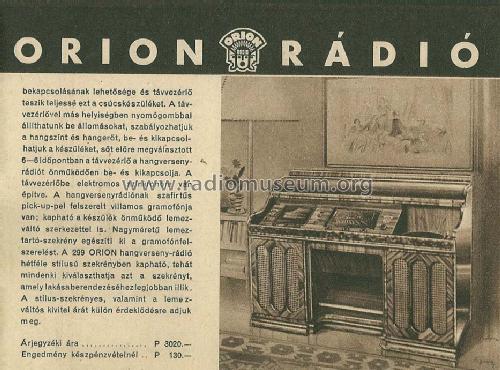

Source of data -- Original prospect or advert
Mentioned in Rádiókészülékek Kapcsolásai 1936-56

Model page created by Folkert Rothe. See "Data change" for further contributors.



All listed radios etc. from Orion; Budapest
Here you find 991 models, 847 with images and 353 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
