• Year
  • 1934
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 17916

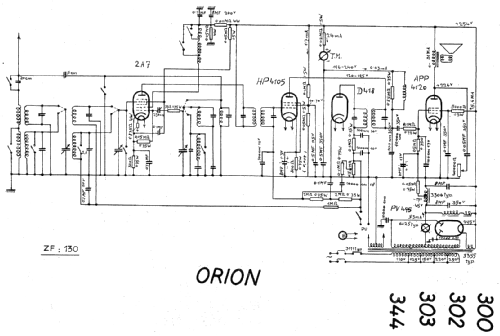

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 127/130 kHz; Reflex
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 150; 220; 250 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 303 - Orion; Budapest
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Dimensions (WHD)
  • 370 x 420 x 240 mm / 14.6 x 16.5 x 9.4 inch
  • Notes
  • Feldst.Anz.
  • Price in first year of sale
  • 395.00 SFR
  • External source of data
  • E. Erb 3-907007-36-0
  • Circuit diagram reference
  • Die «Thali Schemasammlung» führt das Modell.
  • Picture reference
  • Das Modell ist im «Radiokatalog» (Erb) abgebildet.
