Orion; Budapest: 377 [Radio] ID = 472250 784x621

Select picture or schematic to display from thumbnails on the right and click for download.

For model 377, Orion; Budapest:
A magyar rádiózás története.

Country:

Hungary

Manufacturer / Brand:

Orion; Budapest

Year: 1942/1943

Category: Broadcast Receiver - or past WW2 Tuner

Valves / Tubes

7: EF8 ECH4 EF9 EF9 EM4 EBL21 AZ21

Main principle	Superhet with RF-stage; ZF/IF 473,6 kHz
Tuned circuits	7 AM circuit(s)
Wave bands	Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage	Alternating Current supply (AC) / 105-250 Volt
Loudspeaker	Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 25 cm = 9.8 inch
Power out
from Radiomuseum.org	Model: 377 - Orion; Budapest
Material	Wooden case
Dimensions (WHD)	632 x 492 x 300 mm / 24.9 x 19.4 x 11.8 inch
Notes	variable Bandbreite, 4x Kurzwelle.
Price in first year of sale	715.00 Pengő
External source of data	E. Erb 3-907007-36-0

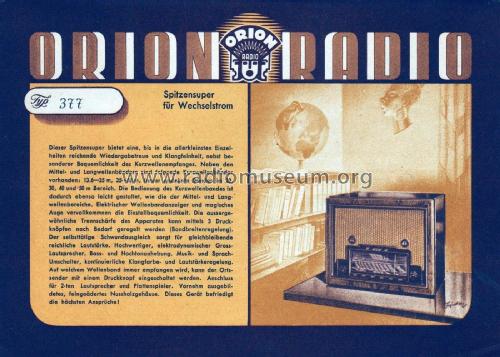

Source of data	-- Original prospect or advert
Mentioned in	Rádiókészülékek Kapcsolásai 1936-56
