442G; Orion; Budapest (ID = 380330) Radio

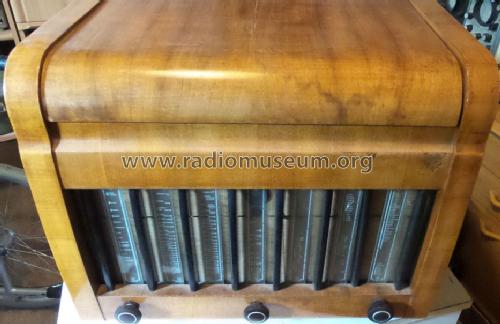

Orion; Budapest: 442G [Radio] ID = 380330 398x457
Select picture or schematic to display from thumbnails on the right and click for download.
For model 442G, Orion; Budapest:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Hungary
Manufacturer / Brand:  Orion; Budapest
Year: 1951 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6BE6 6BA6 6AT6 6AQ5 EM4 6AQ5 AZ21
Main principle Super-Heterodyne (Super in general); ZF/IF 473,6 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and more than two Short Wave bands.

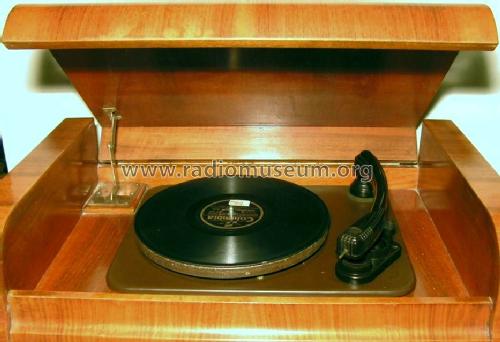

Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 110; 127; 150; 180; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 442G - Orion; Budapest
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 595 x 460 x 390 mm / 23.4 x 18.1 x 15.4 inch
Notes Gegentaktendstufe!
Source of data - - Manufacturers Literature
Mentioned in Rádiókészülékek Kapcsolásai 1936-56

Model page created by Folkert Rothe. See "Data change" for further contributors.
