For model 7050, Orion; Budapest:
Thanks for Mr.Kósa Endre Hungary! More info: ..szepradiok.hu/detektoros.html

Country:  Hungary
Manufacturer / Brand:  Orion; Budapest
Year: 1931–1933 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: NS4 NS4 NS4 NW4 L43 GL4
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown)
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 105-220 Volt
Loudspeaker -Loudspeaker incorporated, but system not known.
Power out
from Radiomuseum.org Model: 7050 - Orion; Budapest
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 480 x 480 x 250 mm / 18.9 x 18.9 x 9.8 inch
Notes Rö ?? [3331447B]
Net weight (2.2 lb = 1 kg) 19 kg / 41 lb 13.6 oz (41.85 lb)
Price in first year of sale 351.00 Pengő
External source of data E. Erb 3-907007-36-0

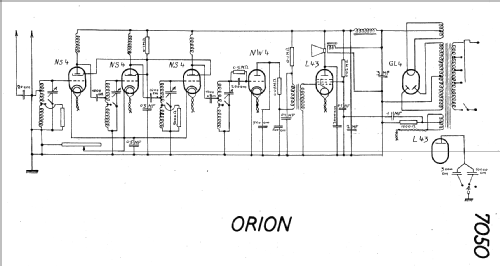

Circuit diagram reference Die «Thali Schemasammlung» führt das Modell.
