AR 311 I

Orion; Budapest

  • Year
  • 1958
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 158678

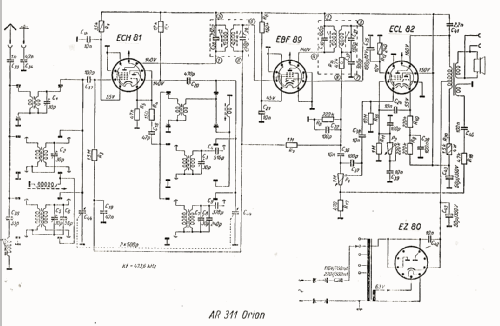

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 473,6 kHz
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 19 cm = 7.5 inch
  • Power out
  • 1.2 W (unknown quality)
  • Material
  • Bakelite case
  • from Radiomuseum.org
  • Model: AR 311 [I] - Orion; Budapest
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 320 x 270 x 250 mm / 12.6 x 10.6 x 9.8 inch
  • Notes
  • SW: 6-18 MHz.
  • Net weight (2.2 lb = 1 kg)
  • 7 kg / 15 lb 6.7 oz (15.419 lb)
