BR311/11C

BR311/11C; Orion; Budapest (ID = 832359) Radio BR311/11C; Orion; Budapest (ID = 832361) Radio
BR311/11C; Orion; Budapest (ID = 832363) Radio BR311/11C; Orion; Budapest (ID = 1569402) Radio
Use red slider bar for more.

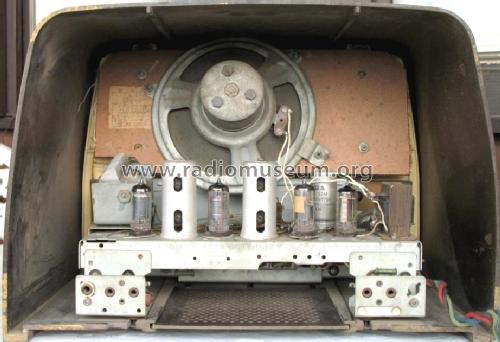

BR311/11C; Orion; Budapest (ID = 832359) Radio
Orion; Budapest: BR311/11C [Radio] ID = 832359 916x462
Select picture or schematic to display from thumbnails on the right and click for download.
For model BR311/11C, Orion; Budapest:
STS Archív. Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Hungary
Manufacturer / Brand:  Orion; Budapest
Year: 1958/1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1R5T 1T4T 1S5T 3V4
Main principle Superheterodyne (common); ZF/IF 473,6 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Storage and/or dry batteries / 90 & 1,4 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch
Power out 0.15 W (unknown quality)
from Radiomuseum.org Model: BR311/11C - Orion; Budapest
Material Moulded (Bakelite or Plastics)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 320 x 270 x 250 mm / 12.6 x 10.6 x 9.8 inch
Net weight (2.2 lb = 1 kg) 7 kg / 15 lb 6.7 oz (15.419 lb)
Source of data Radio es Televizio Vevö Keszülekek, 1958-59

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
