Hi-Fi Box HS-282

Hi-Fi Box HS-282; Orion; Budapest (ID = 1195246) Speaker-P Hi-Fi Box HS-282; Orion; Budapest (ID = 708365) Speaker-P
Hi-Fi Box HS-282; Orion; Budapest (ID = 708369) Speaker-P Hi-Fi Box HS-282; Orion; Budapest (ID = 1195247) Speaker-P
Hi-Fi Box HS-282; Orion; Budapest (ID = 1195248) Speaker-P Hi-Fi Box HS-282; Orion; Budapest (ID = 1195249) Speaker-P
Hi-Fi Box HS-282; Orion; Budapest (ID = 1470405) Speaker-P Hi-Fi Box HS-282; Orion; Budapest (ID = 1470406) Speaker-P
Hi-Fi Box HS-282; Orion; Budapest (ID = 1470407) Speaker-P Hi-Fi Box HS-282; Orion; Budapest (ID = 1470408) Speaker-P
Use red slider bar for more.
Hi-Fi Box HS-282; Orion; Budapest (ID = 1195246) Speaker-P
Orion; Budapest: Hi-Fi Box HS-282 [Speaker-P] ID = 1195246 650x484
Select picture or schematic to display from thumbnails on the right and click for download.
For model Hi-Fi Box HS-282, Orion; Budapest:
Thanks for Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Hungary
Manufacturer / Brand:  Orion; Budapest
Year: 1982 ?? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed

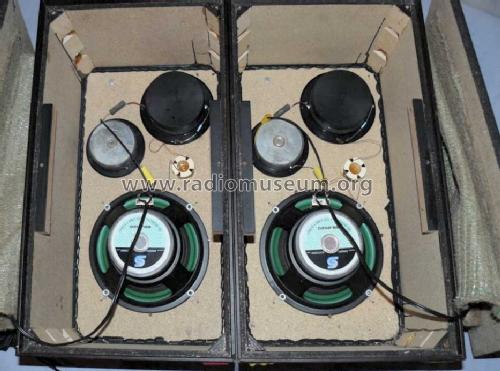

Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: Hi-Fi Box HS-282 - Orion; Budapest
Material Wooden case
Dimensions (WHD) 280 x 500 x 220 mm / 11 x 19.7 x 8.7 inch
Notes 40 W, 4-8 Ohm, 60-20000 Hz, Woofer: 200 mm, Squwker: 40 mm, Tweeter: 25 mm
Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)
Source of data -- Original prospect or advert

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
