HiFi Box SX 511

HiFi Box SX 511; Orion; Budapest (ID = 1667483) Speaker-P HiFi Box SX 511; Orion; Budapest (ID = 1667484) Speaker-P
HiFi Box SX 511; Orion; Budapest (ID = 1667485) Speaker-P HiFi Box SX 511; Orion; Budapest (ID = 1667486) Speaker-P

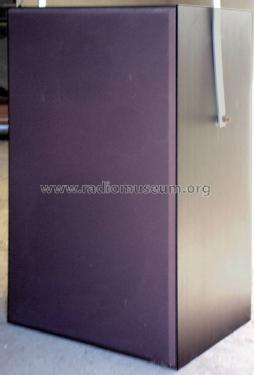

HiFi Box SX 511; Orion; Budapest (ID = 1667487) Speaker-P HiFi Box SX 511; Orion; Budapest (ID = 1667488) Speaker-P
HiFi Box SX 511; Orion; Budapest (ID = 1667490) Speaker-P
Use red slider bar for more.
HiFi Box SX 511; Orion; Budapest (ID = 1667483) Speaker-P
Orion; Budapest: HiFi Box SX 511 [Speaker-P] ID = 1667483 697x1100
Select picture or schematic to display from thumbnails on the right and click for download.
For model HiFi Box SX 511, Orion; Budapest:
Thanks for Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Hungary
Manufacturer / Brand:  Orion; Budapest
Year: 1982 ?? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: HiFi Box SX 511 - Orion; Budapest
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 395 x 640 x 290 mm / 15.6 x 25.2 x 11.4 inch
Notes

80W continuous / 100W max / 8 Ohm. 40-20000 Hz.

Woofer:   1 ( LB 1231, 300 mm)

Midrange: 1 ( HD25)

Tweeter:    1 ( MT 40, with alu horn).

The Sanyo company made ​​to the order, modified version of the HS-511.

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
