HiFi Stereo Cassette deck HX-914L-5 SM-1025; Orion; Budapest (ID = 1223285) R-Player
Orion; Budapest: HiFi Stereo Cassette deck HX-914L-5 SM-1025 [R-Player] ID = 1223285 933x369
Select picture or schematic to display from thumbnails on the right and click for download.
For model HiFi Stereo Cassette deck HX-914L-5 SM-1025, Orion; Budapest:
Thanks for Mr.Sik Béla, Hungary, Budapest and Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation.

Country:  Hungary
Manufacturer / Brand:  Orion; Budapest
Year: 1983 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 14:
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: HiFi Stereo Cassette deck HX-914L-5 SM-1025 - Orion; Budapest
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 280 x 112 x 225 mm / 11 x 4.4 x 8.9 inch
Notes Alpine mechanik. 30-18 000 Hz, FeCr-Cr-Metal.
Price in first year of sale 6'900.00 HUF
Source of data -- Original-techn. papers.

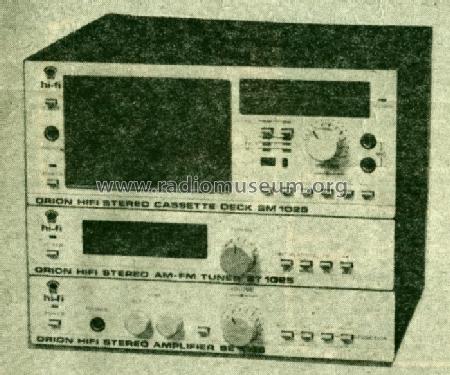

Literature/Schematics (1) Technika 1983/9.
Literature/Schematics (4) -- Schematic

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
