HS 100

Orion; Budapest

Data

Forum

Pictures

Collections

Country
Hungary

Manufacturer / Brand
Orion; Budapest

Year
1978 ?

Category
Loudspeaker, headphone or earphone

Radiomuseum.org ID
130630

Schematics

HS 100; Orion; Budapest (ID = 2225816) Speaker-P — Orion; Budapest HS 100 (3)

HS 100; Orion; Budapest (ID = 1194995) Speaker-P — Orion; Budapest HS 100 (2)

HS 100; Orion; Budapest (ID = 1194993) Speaker-P — Orion; Budapest HS 100 (2)

HS 100; Orion; Budapest (ID = 452703) Speaker-P — Orion; Budapest HS 100 (2)
Original prospekt.

HS 100; Orion; Budapest (ID = 1194994) Speaker-P — Orion; Budapest HS 100 (2)

HS 100; Orion; Budapest (ID = 1575279) Speaker-P — Orion; Budapest HS 100 (2)

HS 100; Orion; Budapest (ID = 1575280) Speaker-P — Orion; Budapest HS 100 (2)

HS 100; Orion; Budapest (ID = 1575282) Speaker-P — Orion; Budapest HS 100 (2)

HS 100; Orion; Budapest (ID = 1575283) Speaker-P — Orion; Budapest HS 100 (2)

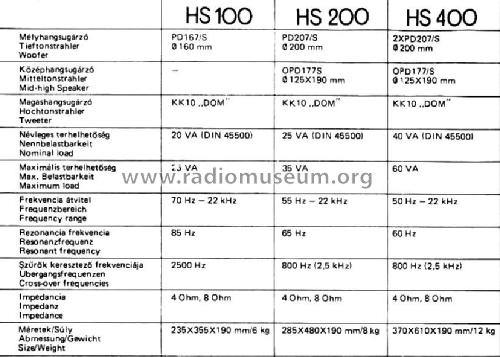

HS 100; Orion; Budapest (ID = 2069399) Speaker-P — Orion; Budapest HS 100 (2)

HS 100; Orion; Budapest (ID = 2069400) Speaker-P — Orion; Budapest HS 100 (2)

HS 100; Orion; Budapest (ID = 2225767) Speaker-P — Orion; Budapest HS 100 (2)

HS 100; Orion; Budapest (ID = 2583900) Speaker-P — Orion; Budapest HS 100 (2)

HS 100; Orion; Budapest (ID = 2904633) Speaker-P — Orion; Budapest HS 100 (2)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Wave bands
- without

Power type and voltage
No Power needed

Loudspeaker
2 Loudspeakers

Material
Wooden case

from Radiomuseum.org
Model: HS 100 - Orion; Budapest

Shape
Tablemodel, with any shape - general.

Dimensions (WHD)
235 x 355 x 190 mm / 9.3 x 14 x 7.5 inch

Notes
Woofer: 1 Midrange:- Tweeter: 1 Nominal Load. 20 W Maximum Load: 25 W Frequency Range: 70-20kHz Resonant Frequency: 85 Hz Cross-over frequency: 2,5 KHz Impedance: 4 Ohm

Net weight (2.2 lb = 1 kg)
6 kg / 13 lb 3.5 oz (13.216 lb)

Source of data
-- Original prospect or advert

Author
Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
