HS-180

HS-180; Orion; Budapest (ID = 452740) Speaker-P HS-180; Orion; Budapest (ID = 2225768) Speaker-P
Use red slider bar for more.
HS-180; Orion; Budapest (ID = 452740) Speaker-P

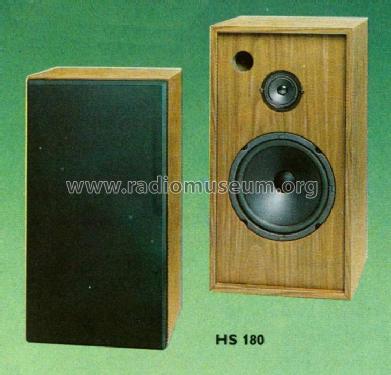

Orion; Budapest: HS-180 [Speaker-P] ID = 452740 730x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model HS-180, Orion; Budapest

Country:  Hungary
Manufacturer / Brand:  Orion; Budapest
Year: 1978 ? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: HS-180 - Orion; Budapest
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 270 x 500 x 230 mm / 10.6 x 19.7 x 9.1 inch
Notes Woofer: 1 Midrange:- Tweeter: 1 Nominal Load. 25 W Maximum Load: 35 W Frequency Range: 60-22kHz Resonant Frequency: 60 Hz Cross-over frequency: 5 KHz Impedance: 4 Ohm
Net weight (2.2 lb = 1 kg) 8 kg / 17 lb 9.9 oz (17.621 lb)
Source of data -- Original prospect or advert

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
