HS-200

HS-200; Orion; Budapest (ID = 2225817) Speaker-P
HS-200; Orion; Budapest (ID = 452733) Speaker-P HS-200; Orion; Budapest (ID = 566866) Speaker-P
HS-200; Orion; Budapest (ID = 728393) Speaker-P HS-200; Orion; Budapest (ID = 1186609) Speaker-P
HS-200; Orion; Budapest (ID = 2069401) Speaker-P HS-200; Orion; Budapest (ID = 2069402) Speaker-P
HS-200; Orion; Budapest (ID = 2225769) Speaker-P
Use red slider bar for more.
HS-200; Orion; Budapest (ID = 452733) Speaker-P
Orion; Budapest: HS-200 [Speaker-P] ID = 452733 933x644
Select picture or schematic to display from thumbnails on the right and click for download.
For model HS-200, Orion; Budapest

Country:  Hungary
Manufacturer / Brand:  Orion; Budapest
Year: 1977 ? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed

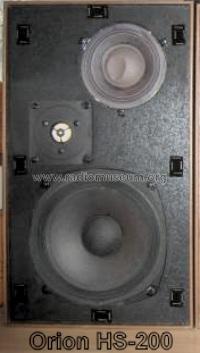

Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: HS-200 - Orion; Budapest
Material Wooden case
Dimensions (WHD) 285 x 480 x 190 mm / 11.2 x 18.9 x 7.5 inch
Notes Woofer: 1 Midrange:1 Tweeter: 1 Nominal Load. 25 W Maximum Load: 35 W Frequency Range: 55-22kHz Resonant Frequency: 65 Hz Cross-over frequencies: 800/2500 Hz Impedance: 4 Ohm
Net weight (2.2 lb = 1 kg) 8 kg / 17 lb 9.9 oz (17.621 lb)

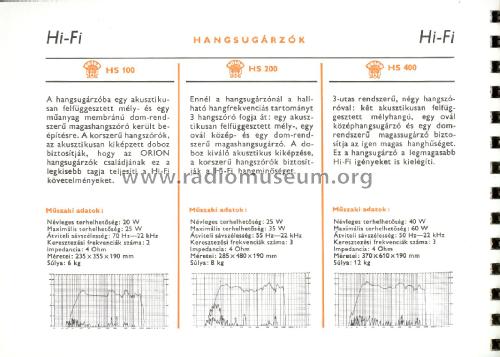

Source of data -- Original prospect or advert

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
