HS-700

HS-700; Orion; Budapest (ID = 1679413) Speaker-P HS-700; Orion; Budapest (ID = 452706) Speaker-P
HS-700; Orion; Budapest (ID = 452710) Speaker-P HS-700; Orion; Budapest (ID = 1679412) Speaker-P
HS-700; Orion; Budapest (ID = 1679414) Speaker-P HS-700; Orion; Budapest (ID = 2225773) Speaker-P
HS-700; Orion; Budapest (ID = 2225812) Speaker-P HS-700; Orion; Budapest (ID = 2226472) Speaker-P
Use red slider bar for more.
HS-700; Orion; Budapest (ID = 1679413) Speaker-P
Orion; Budapest: HS-700 [Speaker-P] ID = 1679413 913x1374
Select picture or schematic to display from thumbnails on the right and click for download.
For model HS-700, Orion; Budapest:
Thanks for Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Hungary
Manufacturer / Brand:  Orion; Budapest
Year: 1979 ? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 5 Loudspeakers
Power out
from Radiomuseum.org Model: HS-700 - Orion; Budapest
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 460 x 725 x 300 mm / 18.1 x 28.5 x 11.8 inch

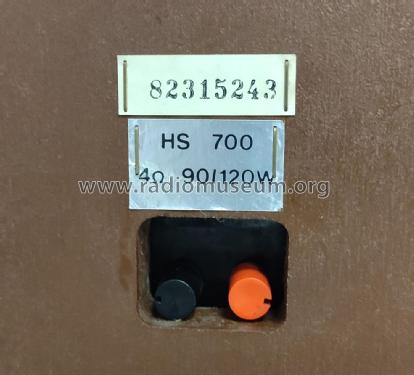

Notes Woofer: 1 Midrange:2 Tweeter: 2 Nominal Load: 100 W Maximum Load: 120 W Frequency Range: 35-22kHz Resonant Frequency: 50 Hz Cross-over frequencies: 700/4000 Hz Impedance: 4;8 Ohm
Net weight (2.2 lb = 1 kg) 19.5 kg / 42 lb 15.2 oz (42.952 lb)
Source of data -- Original prospect or advert

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
