Orister SE-1015

Orister SE-1015; Orion; Budapest (ID = 465800) Ampl/Mixer Orister SE-1015; Orion; Budapest (ID = 492806) Ampl/Mixer
Orister SE-1015; Orion; Budapest (ID = 492807) Ampl/Mixer Orister SE-1015; Orion; Budapest (ID = 492810) Ampl/Mixer
Orister SE-1015; Orion; Budapest (ID = 492811) Ampl/Mixer Orister SE-1015; Orion; Budapest (ID = 492812) Ampl/Mixer
Orister SE-1015; Orion; Budapest (ID = 1010514) Ampl/Mixer Orister SE-1015; Orion; Budapest (ID = 1010515) Ampl/Mixer
Orister SE-1015; Orion; Budapest (ID = 1669234) Ampl/Mixer Orister SE-1015; Orion; Budapest (ID = 1669235) Ampl/Mixer
Use red slider bar for more.
Orister SE-1015; Orion; Budapest (ID = 465800) Ampl/Mixer
Orion; Budapest: Orister SE-1015 [Ampl/Mixer] ID = 465800 933x396
Select picture or schematic to display from thumbnails on the right and click for download.
For model Orister SE-1015, Orion; Budapest:

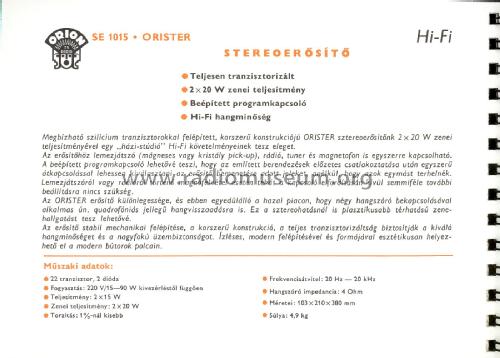

Original prospekt. Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Hungary
Manufacturer / Brand:  Orion; Budapest
Year: 1979 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 22:
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 30 W (unknown quality)
from Radiomuseum.org Model: Orister SE-1015 - Orion; Budapest
Material Various materials
Shape Book-shelf unit.
Dimensions (WHD) 380 x 103 x 210 mm / 15 x 4.1 x 8.3 inch
Notes 20-20000 Hz, 4 Ohm 2× 15 W.
Net weight (2.2 lb = 1 kg) 4.9 kg / 10 lb 12.7 oz (10.793 lb)
Price in first year of sale 3'770.00 HUF
Source of data - - Data from my own collection

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
