Speaker LB1231

Speaker LB1231; Orion; Budapest (ID = 1195138) Speaker-P Speaker LB1231; Orion; Budapest (ID = 1195139) Speaker-P
Speaker LB1231; Orion; Budapest (ID = 1196987) Speaker-P
Use red slider bar for more.

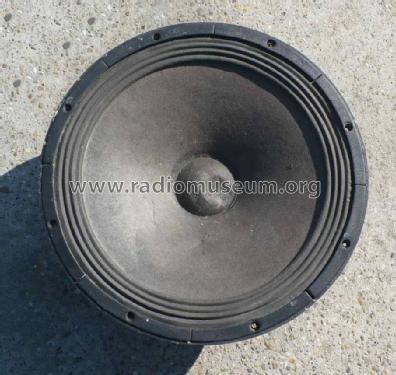

Speaker LB1231; Orion; Budapest (ID = 1195138) Speaker-P
Orion; Budapest: Speaker LB1231 [Speaker-P] ID = 1195138 906x857
Select picture or schematic to display from thumbnails on the right and click for download.
For model Speaker LB1231, Orion; Budapest:
Thanks for Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Hungary
Manufacturer / Brand:  Orion; Budapest
Year: 1975 ?? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Speaker LB1231 - Orion; Budapest
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 300 x 0 x 0 mm / 11.8 x 0 x 0 inch
Notes 100 VA, 8 Ohm.
Source of data -- Original-techn. papers.

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
