Speaker PD 97

Speaker PD 97; Orion; Budapest (ID = 1064669) Speaker-P
Use red slider bar for more.
Speaker PD 97; Orion; Budapest (ID = 1064669) Speaker-P
Orion; Budapest: Speaker PD 97 [Speaker-P] ID = 1064669 700x776
Select picture or schematic to display from thumbnails on the right and click for download.
For model Speaker PD 97, Orion; Budapest:

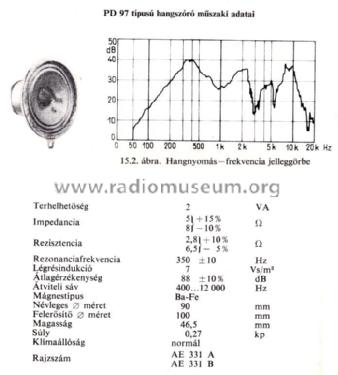

Original-techn. papers Thanks for Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Hungary
Manufacturer / Brand:  Orion; Budapest
Year: 1966 ?? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Speaker PD 97 - Orion; Budapest
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 100 x 47 x 0 mm / 3.9 x 1.9 x 0 inch
Notes Z= 5 other 8 Ohm. 400-12000 Hz.
Net weight (2.2 lb = 1 kg) 0.270 kg / 0 lb 9.5 oz (0.595 lb)
Source of data -- Original-techn. papers.

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
