• Country
• Japan

• Manufacturer / Brand
• Orion Electric Co., Ltd.; Echizen-shi (Fukui)

• Year
• 1968 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 214921

• Number of Transistors
• 8

• Semiconductors
• 2SA466 2SA466 2SA45 2SB422 2SB422 2SA466 unknown_tr 2SB423

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 2 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch

• Power out
• 0.2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

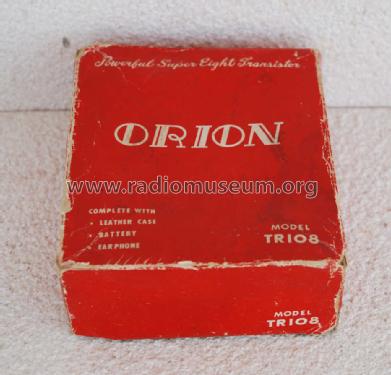

• Model: Super 8 Transistor TR108 D3 - Orion Electric Co., Ltd.;

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 110 x 65 x 30 mm / 4.3 x 2.6 x 1.2 inch

• Notes

• Compare with most similar model Belson TR 1012 NT.

  Made in Japan JT-602.

• Net weight (2.2 lb = 1 kg)
• 0.180 kg / 0 lb 6.3 oz (0.396 lb)

• Author
• Model page created by José Manuel Silvestre. See "Data change" for further contributors.
