75400

75400; ÖTAG; (ID = 2111) RF-Ampl.
Use red slider bar for more.

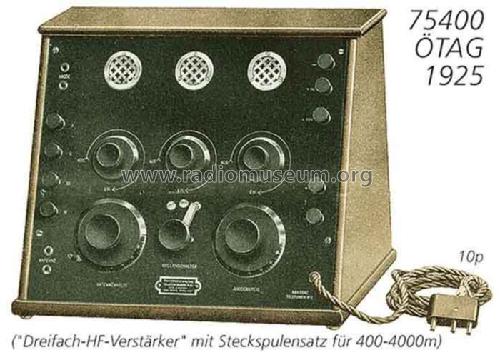

75400; ÖTAG; (ID = 2111) RF-Ampl.
ÖTAG;: 75400 [RF-Ampl.] ID = 2111 700x493
Select picture or schematic to display from thumbnails on the right and click for download.
For model 75400, ÖTAG; Österreichische Telefonfabriks-AG, vorm. J. Berliner; Wien

Country:  Austria
Manufacturer / Brand:  ÖTAG; Österreichische Telefonfabriks-AG, vorm. J. Berliner; Wien
alternative name

Österreichische Telephonfabriks-AG
Brand
Berliner
Year: 1925 Category: RF (Radio Frequency-) Amplifier
Valves / Tubes 3:
Main principle TRF with regeneration; 2 Special
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries / 100+4 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: 75400 - ÖTAG; Österreichische
Material Wooden case
Notes 3fach HF-Verstärker zu 75500
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from ÖTAG; Österreichische Telefonfabriks-AG, vorm. J. Berliner; Wien
Here you find 99 models, 62 with images and 16 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
