Berliner Standard 3GL

Berliner Standard 3GL; ÖTAG; (ID = 90582) Radio
Berliner Standard 3GL; ÖTAG; (ID = 225054) Radio Berliner Standard 3GL; ÖTAG; (ID = 225057) Radio

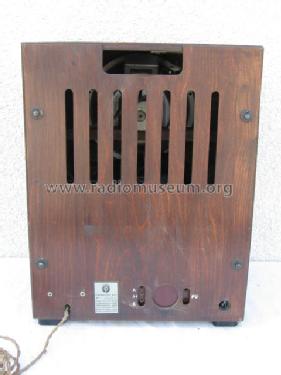

Berliner Standard 3GL; ÖTAG; (ID = 225056) Radio Berliner Standard 3GL; ÖTAG; (ID = 2120) Radio
Berliner Standard 3GL; ÖTAG; (ID = 225055) Radio Berliner Standard 3GL; ÖTAG; (ID = 225058) Radio
Use red slider bar for more.
Berliner Standard 3GL; ÖTAG; (ID = 225054) Radio
ÖTAG;: Berliner Standard 3GL [Radio] ID = 225054 480x640
Select picture or schematic to display from thumbnails on the right and click for download.
For model Berliner Standard 3GL, ÖTAG; Österreichische Telefonfabriks-AG, vorm. J. Berliner; Wien:
Berliner Standard 3GL

Country:  Austria
Manufacturer / Brand:  ÖTAG; Österreichische Telefonfabriks-AG, vorm. J. Berliner; Wien
alternative name

Österreichische Telephonfabriks-AG
Brand
Berliner
Year: 1933/1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: B2046 B2046 B2043
Main principle Superheterodyne (common)
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Direct Current supply (DC) / 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Berliner Standard 3GL - ÖTAG; Österreichische
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Notes (BV-46515)
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Unterlagen E.Erb
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from ÖTAG; Österreichische Telefonfabriks-AG, vorm. J. Berliner; Wien
Here you find 99 models, 62 with images and 16 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
