For model Berliner Standard 3LW, ÖTAG; Österreichische Telefonfabriks-AG, vorm. J. Berliner; Wien:
Standard 3LW

Country:  Austria
Manufacturer / Brand:  ÖTAG; Österreichische Telefonfabriks-AG, vorm. J. Berliner; Wien
alternative name

Österreichische Telephonfabriks-AG
Brand
Berliner
Year: 1931/1932 Category: Broadcast Receiver - or past WW2 Tuner

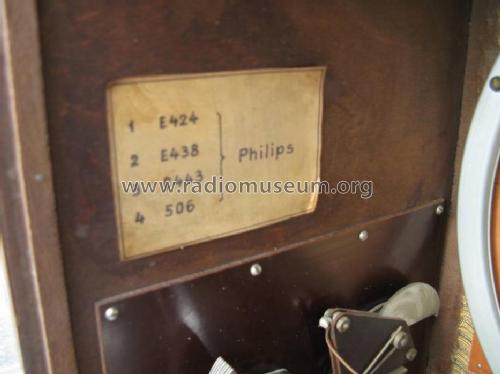

Valves / Tubes 4: E424 E438 C443 506
Main principle TRF without regeneration
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Magnetic loudspeaker (reed) of high quality (free mooving - only possible past 1931).
Power out
from Radiomuseum.org Model: Berliner Standard 3LW - ÖTAG; Österreichische
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 360 x 440 x 245 mm / 14.2 x 17.3 x 9.6 inch
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb


All listed radios etc. from ÖTAG; Österreichische Telefonfabriks-AG, vorm. J. Berliner; Wien
Here you find 99 models, 62 with images and 16 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
