E16G

E16G; Owin; Hannover (ID = 189022) Radio E16G; Owin; Hannover (ID = 189023) Radio
E16G; Owin; Hannover (ID = 189026) Radio E16G; Owin; Hannover (ID = 189021) Radio
E16G; Owin; Hannover (ID = 189024) Radio E16G; Owin; Hannover (ID = 189025) Radio
Use red slider bar for more.
E16G; Owin; Hannover (ID = 189022) Radio

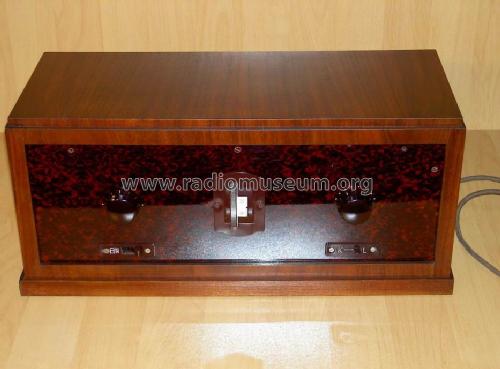

Owin; Hannover: E16G [Radio] ID = 189022 933x690
Select picture or schematic to display from thumbnails on the right and click for download.
For model E16G, Owin; Hannover

Country:  Germany
Manufacturer / Brand:  Owin; Hannover
Year: 1930/1931 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: RE034s RE034s RE134S
schematic requested
Main principle TRF with regeneration
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Direct Current supply (DC) / 110; 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: E16G - Owin; Hannover
Material Wooden case
Shape Tablemodel, with any shape - general.
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Röhren in FS-Bestückungstabellen
