Lautsprecher L2D

Owin; Hannover

  • Year
  • 1932–1934
  • Category
  • Loudspeaker, headphone or earphone
  • Radiomuseum.org ID
  • 117038

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • Powered by external power supply or a main unit.
  • Loudspeaker

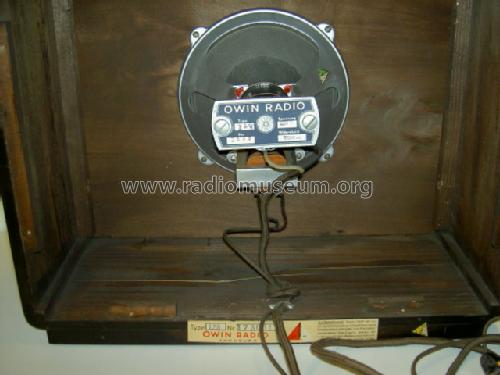

  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 22 cm = 8.7 inch
  • Power out
  • 4 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Lautsprecher L2D - Owin; Hannover
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 410 x 335 x 170 mm / 16.1 x 13.2 x 6.7 inch
  • Net weight (2.2 lb = 1 kg)
  • 1.6 kg / 3 lb 8.4 oz (3.524 lb)
  • Source of data
  • - - Data from my own collection
  • Author
  • Model page created by Bernd Schmitz. See "Data change" for further contributors.
