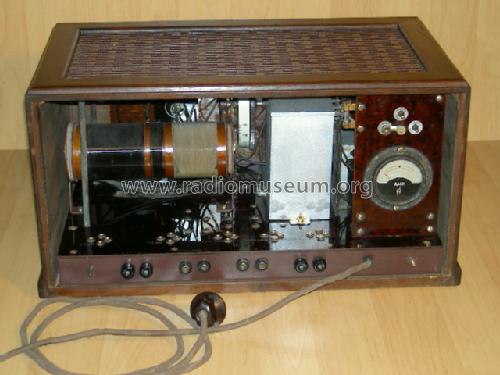

V20G; Owin; Hannover (ID = 232120) Radio V20G; Owin; Hannover (ID = 232124) Radio

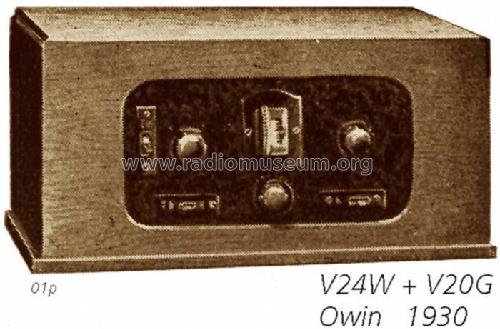

V20G; Owin; Hannover (ID = 610) Radio V20G; Owin; Hannover (ID = 232121) Radio

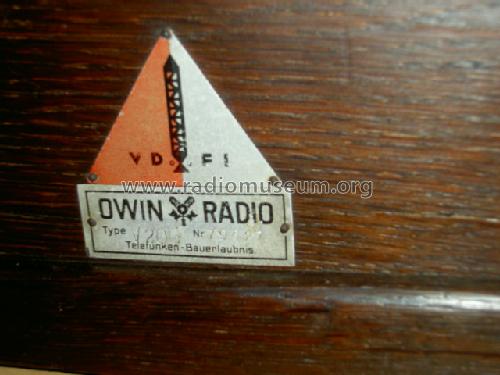

V20G; Owin; Hannover (ID = 232122) Radio V20G; Owin; Hannover (ID = 232123) Radio
V20G; Owin; Hannover (ID = 1822392) Radio V20G; Owin; Hannover (ID = 2508483) Radio
Use red slider bar for more.
V20G; Owin; Hannover (ID = 232120) Radio
Owin; Hannover: V20G [Radio] ID = 232120 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model V20G, Owin; Hannover

Country:  Germany
Manufacturer / Brand:  Owin; Hannover
Year: 1930/1931 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: RE034s RE034s RE604 RE604 WE46_Rectron
Main principle TRF with regeneration; 2 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Direct Current supply (DC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 3 W (unknown quality)
from Radiomuseum.org Model: V20G - Owin; Hannover
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes 604 parallel
Price in first year of sale 250.00 RM +
Source of data Radio-Schnorr-Katalog Nr.53 1931/32 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Röhren in FS-Bestückungstabellen
Mentioned in -- Original prospect or advert
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
