500 DDA-Jr. (Piping layout for Disc-Film) C-8804, C-8800

500 DDA-Jr. C-8804, C-8800; Pacent, New York (ID = 1055747) Misc

500 DDA-Jr. C-8804, C-8800; Pacent, New York (ID = 1055752) Misc
Use red slider bar for more.
500 DDA-Jr. C-8804, C-8800; Pacent, New York (ID = 1055747) Misc
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Pacent, New York City
Year: 1929 Category: Miscellaneous (Other, Various) - see notes
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker
Power out
from Radiomuseum.org Model: 500 DDA-Jr. C-8804, C-8800 - Pacent, New York City
Material Various materials
Shape Chassis only or for «building in»

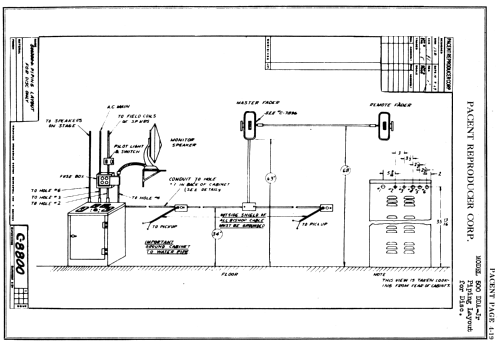

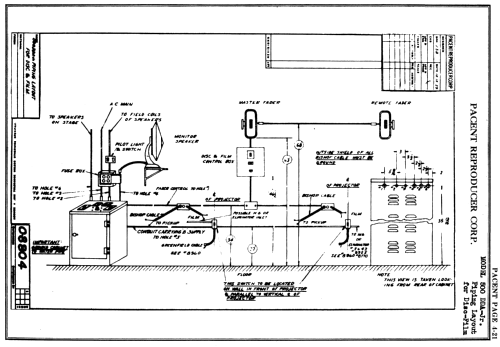

Notes The schematic C-8800 and C-8804 are only piping layouts for Disc-Film model 500 DDA-Jr.
External source of data Ernst Erb
Literature/Schematics (4) Rider's Perpetual, Volume 4 = ca. 1934 and before (Pacent 4-21 drawn in October 1929, 500 DDA-Jr. piping layout for Disc-Film. Pacent 4-19 from 10-9-29)
