Fader Unit C-7896, C-8603

Fader Unit C-7896, C-8603; Pacent, New York (ID = 1055706) Misc
Use red slider bar for more.
Fader Unit C-7896, C-8603; Pacent, New York (ID = 1055706) Misc
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Pacent, New York City
Year: 1929 Category: Miscellaneous (Other, Various) - see notes
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Fader Unit C-7896, C-8603 - Pacent, New York City
Material Various materials
Shape Chassis only or for «building in»

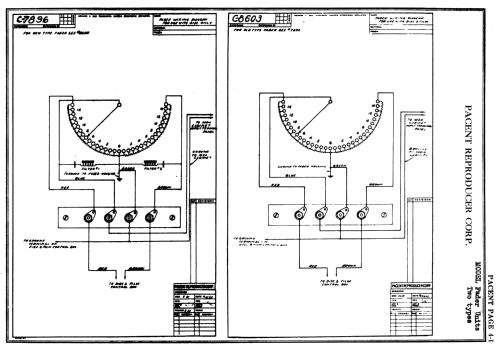

Notes Rider's page Pacent 4-1 schows the fader unit C-7896 and the fader unit C-8603 - we keep them also together by naming both chassis.
External source of data Ernst Erb
Literature/Schematics (4) Rider's Perpetual, Volume 4 = ca. 1934 and before (Pacent page 4-1 - the plan from 1929 shows two different fader units.)


All listed radios etc. from Pacent, New York City
Here you find 36 models, 14 with images and 22 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
