- Country
- New Zealand-Aotearoa
- Manufacturer / Brand
- Pacific (Brand) Various manufacturers
- Year
- 1933
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 338804

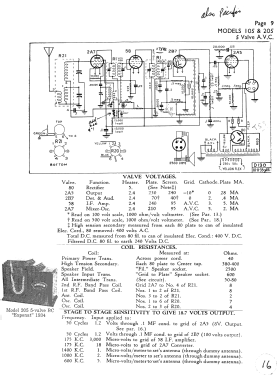

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 175 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 230 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 105 - Pacific Brand Various
- Shape
- Tablemodel, with any shape - general.
- Notes
-
5-Valve superhet with RF preselector broadcast (MW) radio.
See also Courtenay Model 205, Philips Model 5H & Troubadour Model 5H.
Manufactured for Pacific Radio Company Ltd by Radio Corporation of New Zealand Ltd.
- Price in first year of sale
- 18.50 NZ £
- Mentioned in
- More Golden Age of Radio (Page 123)
- Literature/Schematics (1)
- -- Original prospect or advert (Press 5 April 1934 Page 13)
- Author
- Model page created by Brian Stevens. See "Data change" for further contributors.
