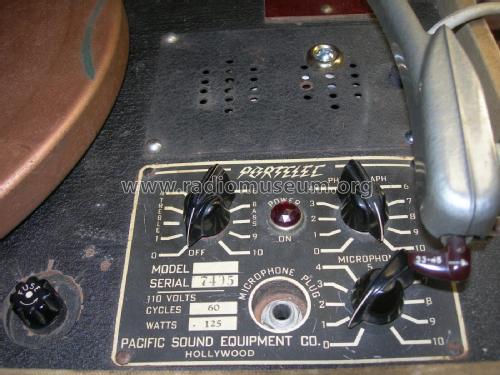

Portelec Portable Phonograph-Transcription Player 20M
Pacific Sound Equipment Co., Inc.; Hollywood, CA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Pacific Sound Equipment Co., Inc.; Hollywood, CA
- Year
- 1946
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 343783
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110 to 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
- Power out
- 12 W (undistorted)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Portelec Portable Phonograph-Transcription Player 20M - Pacific Sound Equipment Co.,
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Notes
-
The Portelec Model 20M has the following features:
- Portable electric phonograph-transcription player that serves audiences up to 500 under normal acoustic conditions.
- Plays regular phonograph records at 78 RPM and electrical transcriptions up to 17-1/4 in. diameter records at 33-1/3 or 78 RPM.
- Microphone input jack and volume control provided.
- External speaker option.
- Price in first year of sale
- 119.50 USD
- Literature/Schematics (1)
- Radio Retailing (Radio & Television R.) (Jan. 1946, page 100, "New Products...Portelec Phonograph Model 20M")
- Author
- Model page created by Jerry Elarton. See "Data change" for further contributors.
