5AG

5AG ; Packard Bell Co.; (ID = 928608) Radio 5AG ; Packard Bell Co.; (ID = 928612) Radio
5AG ; Packard Bell Co.; (ID = 928613) Radio 5AG ; Packard Bell Co.; (ID = 928614) Radio
Use red slider bar for more.

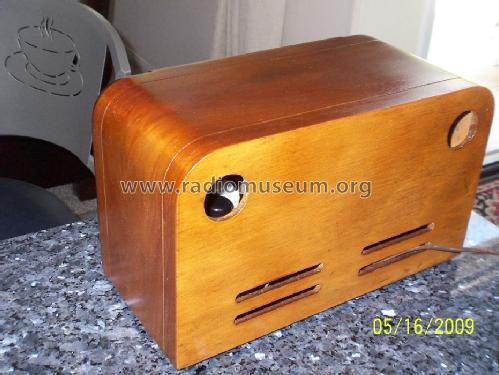

5AG ; Packard Bell Co.; (ID = 928608) Radio
Packard Bell Co.;: 5AG [Radio] ID = 928608 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 5AG, Packard Bell Co.; Los Angeles (CA)

Country:  United States of America (USA)
Manufacturer / Brand:  Packard Bell Co.; Los Angeles (CA)
Year: 1940 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6SA7 6SK7 6SQ7 6V6GT 6X5GT
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 120 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
Power out
from Radiomuseum.org Model: 5AG - Packard Bell Co.; Los Angeles
Material Wooden case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).

Model page created by Stephen Masek. See "Data change" for further contributors.
