30TR

30TR; Paillard AG; St. (ID = 15196) Radio
30TR; Paillard AG; St. (ID = 698251) Radio 30TR; Paillard AG; St. (ID = 698254) Radio

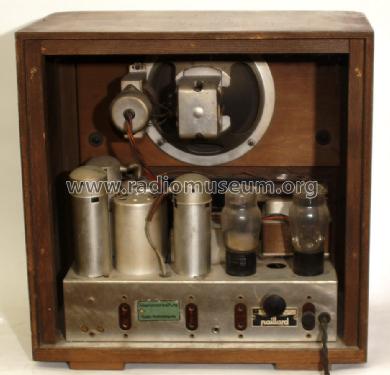

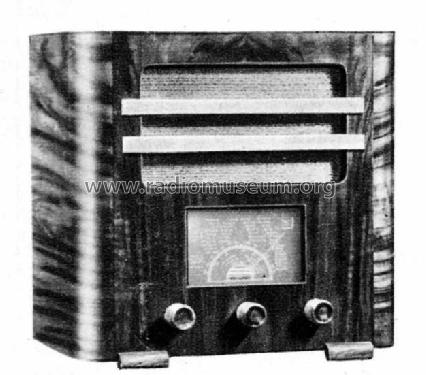

30TR; Paillard AG; St. (ID = 698253) Radio 30TR; Paillard AG; St. (ID = 468174) Radio
30TR; Paillard AG; St. (ID = 698252) Radio
Use red slider bar for more.

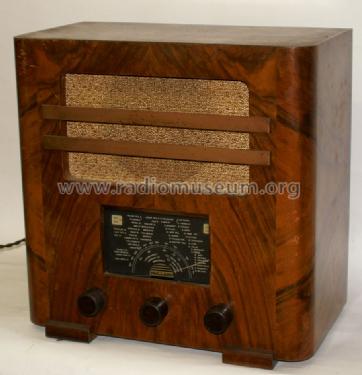

30TR; Paillard AG; St. (ID = 698251) Radio
Paillard AG; St.: 30TR [Radio] ID = 698251 902x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model 30TR, Paillard AG; St. Croix:
eigenes Gerät

Country:  Switzerland
Manufacturer / Brand:  Paillard AG; St. Croix
Year: 1936/1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 2A7 58 2A6 2A5 80
Main principle Superheterodyne (common); ZF/IF 440 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-250 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: 30TR - Paillard AG; St. Croix
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 360 x 370 x 220 mm / 14.2 x 14.6 x 8.7 inch
Notes Chassis Fr. 230.--
Net weight (2.2 lb = 1 kg) 9.8 kg / 21 lb 9.4 oz (21.586 lb)
Price in first year of sale 265.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Thali-Schemasammlung und Tungsram-Röhrenbestückung.


All listed radios etc. from Paillard AG; St. Croix
Here you find 541 models, 252 with images and 299 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
