3204B

3204B; Paillard AG; St. (ID = 15551) Radio
3204B; Paillard AG; St. (ID = 734957) Radio 3204B; Paillard AG; St. (ID = 734958) Radio

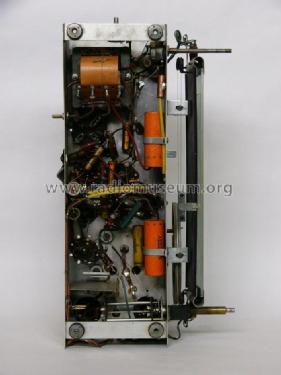

3204B; Paillard AG; St. (ID = 734959) Radio 3204B; Paillard AG; St. (ID = 734960) Radio
3204B; Paillard AG; St. (ID = 734961) Radio 3204B; Paillard AG; St. (ID = 734962) Radio
3204B; Paillard AG; St. (ID = 734979) Radio
Use red slider bar for more.
3204B; Paillard AG; St. (ID = 734957) Radio
Paillard AG; St.: 3204B [Radio] ID = 734957 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 3204B, Paillard AG; St. Croix

Country:  Switzerland
Manufacturer / Brand:  Paillard AG; St. Croix
Year: 1947–1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 7S7 7H7 7B6 7C5 80
Main principle Superheterodyne (common); ZF/IF 470 kHz
Tuned circuits 6 AM circuit(s)
Details

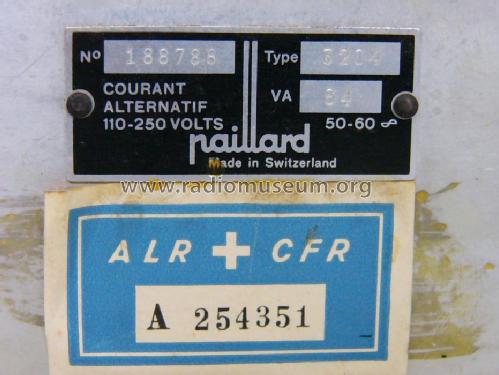

Power type and voltage Alternating Current supply (AC) / 110-250 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: 3204B - Paillard AG; St. Croix
Material Wooden case
Dimensions (WHD) 490 x 315 x 216 mm / 19.3 x 12.4 x 8.5 inch
Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Thali-Schemasammlung und Tungsram-Röhrenbestückung.
