3302; Paillard AG; St. (ID = 256583) Radio

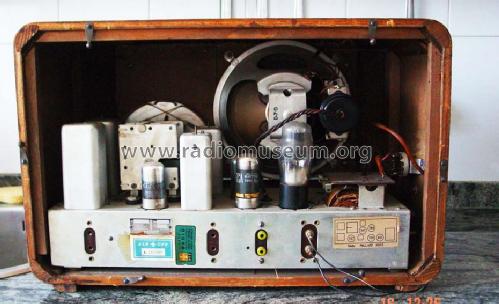

Paillard AG; St.: 3302 [Radio] ID = 256583 933x560
Select picture or schematic to display from thumbnails on the right and click for download.
For model 3302 m.7C5, Paillard AG; St. Croix

Country:  Switzerland
Manufacturer / Brand:  Paillard AG; St. Croix
Year: 1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 7S7 7H7 7B6 7C5 80
Main principle Superheterodyne (common); ZF/IF 470 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 220; 250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: 3302 [m.7C5] - Paillard AG; St. Croix
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 490 x 315 x 220 mm / 19.3 x 12.4 x 8.7 inch
Notes Es gibt auch eine geänderte Ausführung mit 6V6 (Oktal) anstatt 7C6 (Loktal). Dabei wurde auf dem Aufkleber die 7C5 überstempelt mit 6V6. Das hinderte aber offenbar nicht in ein solchermassen gekennzeichnetes Gehäuse ein Chassis mit der 7C7 einzubauen.
Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
Source of data - - Data from my own collection

Model page created by Christian Schaufelberger. See "Data change" for further contributors.
