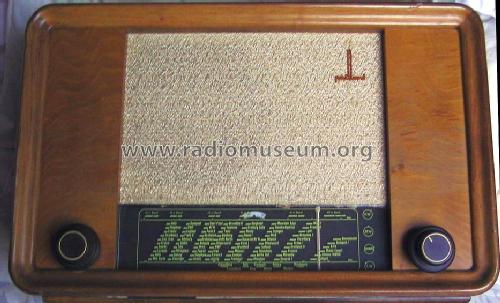

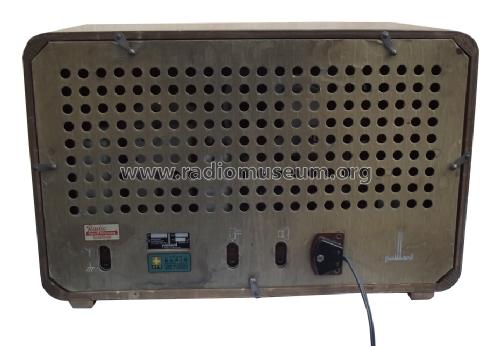

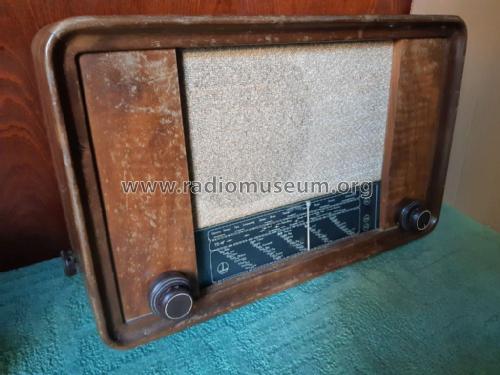

3502B Ch=3502 ohne Drahtfunk

Paillard AG; St. Croix

  • Year
  • 1946–1949
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 13010

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 470 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 145; 220; 250 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 3502B Ch=3502 [ohne Drahtfunk] - Paillard AG; St. Croix
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 490 x 315 x 220 mm / 19.3 x 12.4 x 8.7 inch
  • Notes
  • KW-"Mikroskop"
  • Net weight (2.2 lb = 1 kg)
  • 10 kg / 22 lb 0.4 oz (22.026 lb)
  • Price in first year of sale
  • 545.00 SFr
  • External source of data
  • E. Erb 3-907007-36-0
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
