Exportmodell 3601B Ch= 3601

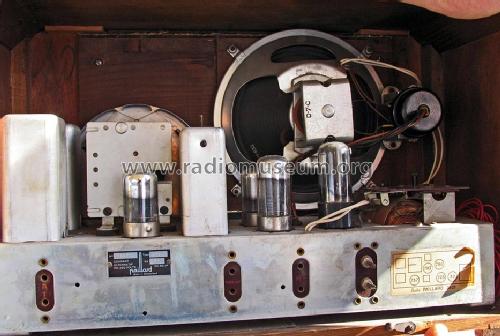

Exportmodell 3601B Ch= 3601; Paillard AG; St. (ID = 1246243) Radio Exportmodell 3601B Ch= 3601; Paillard AG; St. (ID = 1246242) Radio
Exportmodell 3601B Ch= 3601; Paillard AG; St. (ID = 1246250) Radio Exportmodell 3601B Ch= 3601; Paillard AG; St. (ID = 1246251) Radio
Exportmodell 3601B Ch= 3601; Paillard AG; St. (ID = 1254886) Radio Exportmodell 3601B Ch= 3601; Paillard AG; St. (ID = 1254888) Radio
Exportmodell 3601B Ch= 3601; Paillard AG; St. (ID = 1254890) Radio
Use red slider bar for more.
Exportmodell 3601B Ch= 3601; Paillard AG; St. (ID = 1246243) Radio
Paillard AG; St.: Exportmodell 3601B Ch= 3601 [Radio] ID = 1246243 933x626
Select picture or schematic to display from thumbnails on the right and click for download.
For model Exportmodell 3601B Ch= 3601, Paillard AG; St. Croix:
Patrick Fermoyle, Perth, Australia. Missing batch!

Country:  Switzerland
Manufacturer / Brand:  Paillard AG; St. Croix
Year: 1948/1949 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 7S7 7H7 7B6 7C5 80
Main principle Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 64 VA: 110; 125; 145; 220; 250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Exportmodell 3601B Ch= 3601 - Paillard AG; St. Croix
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 490 x 315 x 220 mm / 19.3 x 12.4 x 8.7 inch
Notes The export model 3601 has a speaker code is D-7-C, RH-832. The schematic is probably very similar to models 3302 and 3502B. The look is very similar to the export model 3680B. Tone control (left). Six wave bands: OM, OC2, 30, 25, 19, 13-16 m.
Net weight (2.2 lb = 1 kg) 9.8 kg / 21 lb 9.4 oz (21.586 lb)
External source of data Patrick Fermoyle, Perth, Australia
