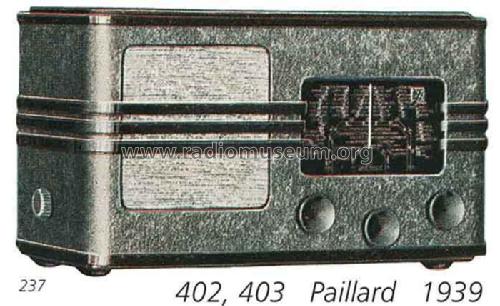

Paillard AG; St.: 402 [Radio] ID = 2146 700x429
Select picture or schematic to display from thumbnails on the right and click for download.
For model 402, Paillard AG; St. Croix

Country:  Switzerland
Manufacturer / Brand:  Paillard AG; St. Croix
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6J8G 6D6 75 EL3 80
Main principle Superheterodyne (common); ZF/IF 470 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 220 250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 402 - Paillard AG; St. Croix
Material Metal case
Dimensions (WHD) 390 x 230 x 170 mm / 15.4 x 9.1 x 6.7 inch
Notes Ch=403 ohne KW
Net weight (2.2 lb = 1 kg) 9.5 kg / 20 lb 14.8 oz (20.925 lb)
Price in first year of sale 225.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Thali-Schemasammlung und Tungsram-Röhrenbestückung.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Paillard AG; St. Croix
Here you find 541 models, 252 with images and 299 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
