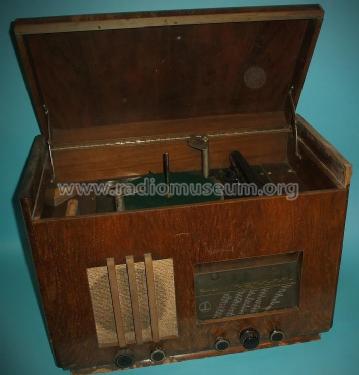

For model 417 with changer, Paillard AG; St. Croix

Country:  Switzerland
Manufacturer / Brand:  Paillard AG; St. Croix
Year: 1940 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 6K7 ECH4 6K7 6H6 EM4 6F5GT 6V6G PV200/600
Main principle Superhet with RF-stage; ZF/IF 470 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 220; 250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 417 [with changer] - Paillard AG; St. Croix
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 660 x 475 x 370 mm / 26 x 18.7 x 14.6 inch
Notes

On label is written 417 only, but box is bigger with changer.
Tube PV200/600 probably is replacement for tube 80.

Mentioned in -- Collector info (Sammler)

Model page created by Gabriel Toth. See "Data change" for further contributors.
