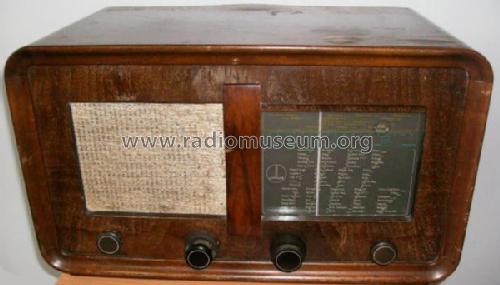

436BAT
Paillard AG; St. Croix
- Country
- Switzerland
- Manufacturer / Brand
- Paillard AG; St. Croix
- Year
- 1943/1944
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 12948
Collected some time ago from a auction site.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Line / Batteries (any type)
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 436BAT - Paillard AG; St. Croix
- Dimensions (WHD)
- 552 x 324 x 287 mm / 21.7 x 12.8 x 11.3 inch
- Net weight (2.2 lb = 1 kg)
- 16 kg / 35 lb 3.9 oz (35.242 lb)
- Price in first year of sale
- 658.00 SFr
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Circuit diagram reference
- Thali-Schemasammlung und Tungsram-Röhrenbestückung.
- Other Models
-
Here you find 549 models, 266 with images and 303 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
