- Country
- Switzerland
- Manufacturer / Brand
- Paillard AG; St. Croix
- Year
- 1943–1945
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 12974
Werbung in Radio Service 1/2-1944
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superhet with RF-stage; ZF/IF 470 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and more than two Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110-250 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org

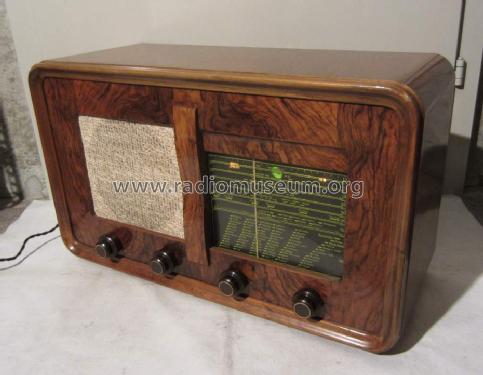

- Model: 448 - Paillard AG; St. Croix
- Dimensions (WHD)
- 690 x 411 x 277 mm / 27.2 x 16.2 x 10.9 inch
- Notes
- 80
- Net weight (2.2 lb = 1 kg)
- 20.5 kg / 45 lb 2.5 oz (45.154 lb)
- Price in first year of sale
- 1,025.00 SFr
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Circuit diagram reference
- Thali-Schemasammlung und Tungsram-Röhrenbestückung.
