4501B

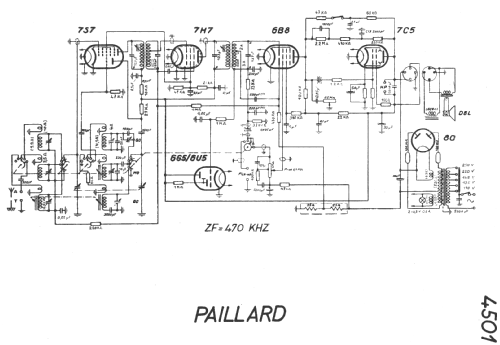

4501B; Paillard AG; St. (ID = 15559) Radio
4501B; Paillard AG; St. (ID = 2425166) Radio 4501B; Paillard AG; St. (ID = 2425173) Radio
4501B; Paillard AG; St. (ID = 2425165) Radio 4501B; Paillard AG; St. (ID = 2425168) Radio
4501B; Paillard AG; St. (ID = 2425169) Radio 4501B; Paillard AG; St. (ID = 2425171) Radio
4501B; Paillard AG; St. (ID = 2167) Radio 4501B; Paillard AG; St. (ID = 626945) Radio
4501B; Paillard AG; St. (ID = 626946) Radio
Use red slider bar for more.
4501B; Paillard AG; St. (ID = 2425166) Radio
Paillard AG; St.: 4501B [Radio] ID = 2425166 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model 4501B, Paillard AG; St. Croix:
CH_Paillard_type 4501 B_vue de côté_coll. William FAGUE

Country:  Switzerland
Manufacturer / Brand:  Paillard AG; St. Croix
Year: 1946–1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 7S7 7H7 6B8 7C5 6U5 80
Main principle Superheterodyne (common); ZF/IF 470 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: 4501B - Paillard AG; St. Croix
Material Wooden case
Dimensions (WHD) 540 x 320 x 230 mm / 21.3 x 12.6 x 9.1 inch
Notes KW-Lupe?
Net weight (2.2 lb = 1 kg) 11.5 kg / 25 lb 5.3 oz (25.33 lb)
Price in first year of sale 645.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Paillard AG; St. Croix
Here you find 541 models, 253 with images and 300 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
