4502-B

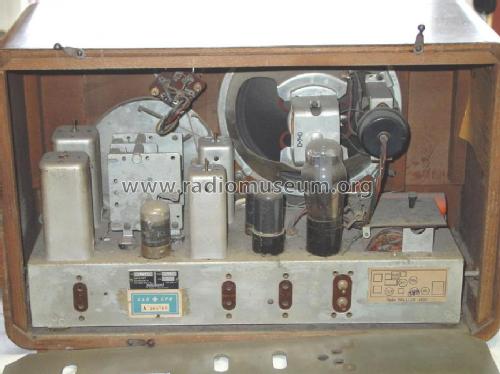

4502-B; Paillard AG; St. (ID = 123252) Radio 4502-B; Paillard AG; St. (ID = 123254) Radio
4502-B; Paillard AG; St. (ID = 123253) Radio 4502-B; Paillard AG; St. (ID = 572652) Radio
4502-B; Paillard AG; St. (ID = 572653) Radio
Use red slider bar for more.
4502-B; Paillard AG; St. (ID = 123252) Radio
Paillard AG; St.: 4502-B [Radio] ID = 123252 933x633
Select picture or schematic to display from thumbnails on the right and click for download.
For model 4502-B, Paillard AG; St. Croix

Country:  Switzerland
Manufacturer / Brand:  Paillard AG; St. Croix
Year: 1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 7S7 7H7 7B6 6V6 6U5 80
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet. / Ø 16 cm = 6.3 inch
Power out
from Radiomuseum.org Model: 4502-B - Paillard AG; St. Croix
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 490 x 320 x 240 mm / 19.3 x 12.6 x 9.4 inch
Net weight (2.2 lb = 1 kg) 10.4 kg / 22 lb 14.5 oz (22.907 lb)
Collectors' prices
Source of data Radiokatalog Band 2, Ernst Erb

Model page created by Peter Böhm. See "Data change" for further contributors.
