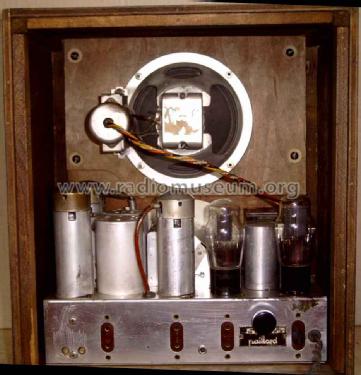

654; Paillard AG; St. (ID = 709091) Radio 654; Paillard AG; St. (ID = 1637248) Radio
654; Paillard AG; St. (ID = 1637242) Radio 654; Paillard AG; St. (ID = 1637244) Radio
654; Paillard AG; St. (ID = 1637247) Radio 654; Paillard AG; St. (ID = 1637241) Radio

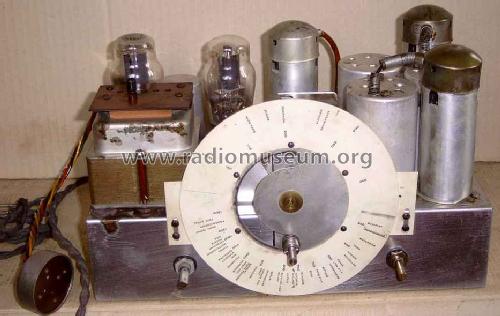

654; Paillard AG; St. (ID = 1637243) Radio
Use red slider bar for more.
654; Paillard AG; St. (ID = 709091) Radio
Paillard AG; St.: 654 [Radio] ID = 709091 834x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model 654, Paillard AG; St. Croix

Country:  Switzerland
Manufacturer / Brand:  Paillard AG; St. Croix
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 2A7 58 2A6 2A5 80
Main principle Superheterodyne (common); ZF/IF 440 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 220; 250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: 654 - Paillard AG; St. Croix
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 350 x 400 x 230 mm / 13.8 x 15.7 x 9.1 inch
Notes

Siehe auch Paillard 54.

Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Die «Thali Schemasammlung» führt das Modell.
