Gramophone Motor No 4000

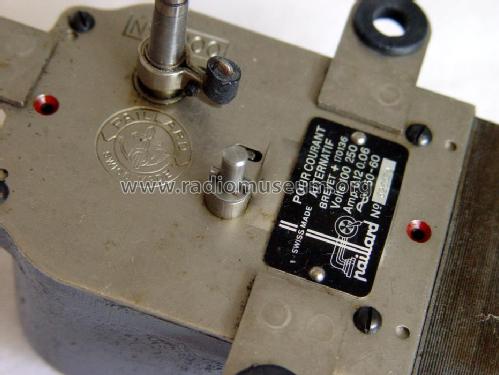

Gramophone Motor No 4000; Paillard AG; St. (ID = 1883839) R-Player Gramophone Motor No 4000; Paillard AG; St. (ID = 1883840) R-Player
Gramophone Motor No 4000; Paillard AG; St. (ID = 1883841) R-Player Gramophone Motor No 4000; Paillard AG; St. (ID = 1883842) R-Player
Gramophone Motor No 4000; Paillard AG; St. (ID = 1883843) R-Player Gramophone Motor No 4000; Paillard AG; St. (ID = 1883844) R-Player
Gramophone Motor No 4000; Paillard AG; St. (ID = 1883845) R-Player Gramophone Motor No 4000; Paillard AG; St. (ID = 1883846) R-Player
Use red slider bar for more.
Gramophone Motor No 4000; Paillard AG; St. (ID = 1883839) R-Player
Paillard AG; St.: Gramophone Motor No 4000 [R-Player] ID = 1883839 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Gramophone Motor No 4000, Paillard AG; St. Croix

Country:  Switzerland
Manufacturer / Brand:  Paillard AG; St. Croix
Year: 1939 ?? Category: Sound/Video Recorder and/or Player
Wave bands - without
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 100; 250 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: Gramophone Motor No 4000 - Paillard AG; St. Croix
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 170 x 75 x 120 mm / 6.7 x 3 x 4.7 inch
Notes

Special gramophone asynchronous motor.

  • patent Paillard 170136
  • voltage:  100/250 V
  • current:   0,12/0,06 A
  • frequency: 50 - 60 Hz
  • speed:     78 (controlled)

Model page created by Jaroslav Hlavaty. See "Data change" for further contributors.
