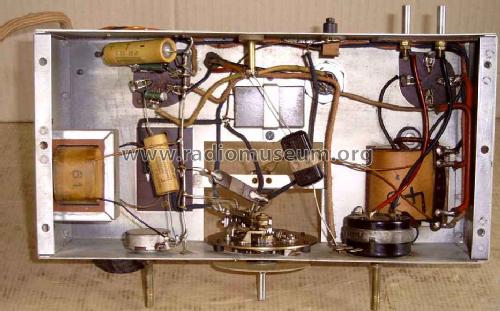

NF-Telefonrundspruch 42; Paillard AG; St. (ID = 1635147) Wired-W NF-Telefonrundspruch 42; Paillard AG; St. (ID = 1635148) Wired-W
Use red slider bar for more.
NF-Telefonrundspruch 42; Paillard AG; St. (ID = 1635141) Wired-W
Paillard AG; St.: NF-Telefonrundspruch 42 [Wired-W] ID = 1635141 796x720
Select picture or schematic to display from thumbnails on the right and click for download.
For model NF-Telefonrundspruch 42, Paillard AG; St. Croix

Country:  Switzerland
Manufacturer / Brand:  Paillard AG; St. Croix
Year: 1937 Category: Wired Receiver (AF only)
Valves / Tubes 2: 2A5E 80
Main principle Audio-Amplification
Wave bands - without
Details Wired Wireless Receiver(AF only)
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 220; 250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: NF-Telefonrundspruch 42 - Paillard AG; St. Croix
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 340 x 305 x 220 mm / 13.4 x 12 x 8.7 inch
Notes

Wähleinrichtung: Type PS2;
Zahlen auf der Wählscheibe 1 bis 6, sonst keine Zeichen.

Net weight (2.2 lb = 1 kg) 8 kg / 17 lb 9.9 oz (17.621 lb)

Model page created by Manfred Rathgeb. See "Data change" for further contributors.
